Repair Zenfone C ZC451CG Unbrick

Several times I asked the same question and establishing a friend of mine that I have discussed many times until the end of his current, I have to give what I have science as defined service phones, rather learn together and mutually share, a question that I hear is How easy and Simple Flashing Asus Zenfone C ZC451CG or Z007 using adb fastboot, will answer questions from my friends straight here, so that others can easily learn.


Zenfone C ZC451CG Unbrick

Before stepping into the way flashing asus zenfone c via adb fastboot, there are both his materials and you provide the tools, don't forget to adjust the also with asus cell phone would you flash is certainly not an error occurred at a time when the process of flashing, and materials that among them are


Here The Files Needed
Asus Stockrom ADB Fastboot ROM Here

Asus USB Driver Here

Minimal ADB And Fastboot Here


  • For the first time her first extract firmware asus zenfone c and produces a folder in his is adb
  • Install the usb drivers on android asus pc/laptop you
  • After that turn off his cell phone asus siahkan and into fastboot mode by pressing and holding the volume down button and power button together
  • When true, will appear on the screen of your mobile phone with fastboot recovery menu, skip it and you instantly switch to pc/laptop you returning
  • Search folder you have extract the adb earlier on pc/laptop such as in the following image below

Zenfone C ZC451CG Unbrick


  • After the meet, try to hold down the SHIFT key on the keyboard of your pc/laptop and click the left mouse button and you can select the menu Open Command Windows Here
  • There will be a windows command window that pops up and please you follow orders and how to type in the command prompt window as the following
  • fastboot devices and press enter, when between mobile phones and computers are indeed connected, then at the command prompt window will look series from asus you after you type the first command above
  • And if it successfully detected fastboot series from asus, please proceed by entering the command again as follows
  • fastboot erase cache and press enter
  • fastboot erase userdata and then press enter
  • fastboot erase system and press enter
  • fastboot reboot-bootloader and press enter
  • Steps to erase you already did and the phone will automatically restart and turned on directly back to mode fastboot, and please you re entering commands for flashing his asus as follows
  • fastboot flash boot boot img and then press enter.
  • fastboot flash recovery recovery img and then press enter.
  • fastboot flash img. fastboot fastboot and press enter

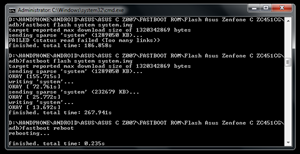

  • fastboot flash system system img and then press enter.
  • Wait until it finishes the process of extracting the firmware from asus to mobile phones, it may take approximately 10 to 15 minutes
  • And when in the command prompt window has caption OKAY, the last step you do is type the command once more still on the Windows command prompt fastboot reboot
  • The phone will restart and going straight to the home screen menu
  • Done and release the connection between your phone and a computer, this is a picture of the result of the way flashing asus z007 you already did last

Zenfone C ZC451CG Unbrick

Thus missed already question from my friends who ask me how to Flash Asus Zenfone C Via ADB, how this applies only for asus experiencing bootloop and system have stopped, for the way flashing asus via sdcard I include his files above but with other means, any possible damage that occurs is not our responsibility,and thanks
